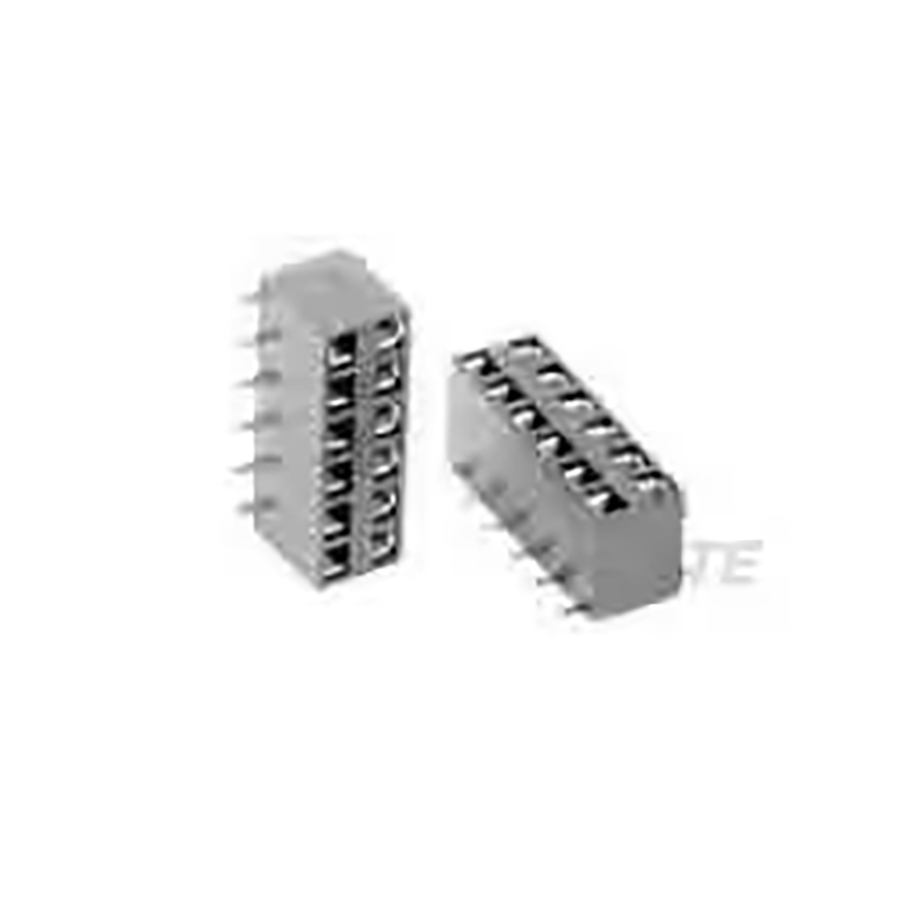

1-966645-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-966645-0
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Connector, Receptacle, Socket Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 7 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Copper, Tin |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 20 |
| ELV | Compliant |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polycyclohexylenedimethylene |
| Contact Style | Socket |
| Contact Resistance | 12 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6 mm |
| Plating Thickness | 2.5 µm |
| Contact Gender | Female |
| Stackable | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Finish Thickness - Mating | 762 nm |
| PCB Mount Retention | Without |
Stock: 208
Distributors
pcbx
pcbxUnit Price$4.01133
Ext.Price$4.01133
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.01133 | $4.01133 |
| 10 | $3.64200 | $36.42000 |
| 25 | $3.48517 | $87.12925 |
| 50 | $3.33509 | $166.75450 |
| 100 | $3.19145 | $319.14500 |
| 300 | $2.56750 | $770.25000 |
| 500 | $2.06551 | $1032.75500 |
| 1000 | $2.02790 | $2027.90000 |
